MRCOOL® 9k DIY 5th Generation Mini-split Air Handler & Condenser 115v
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that.

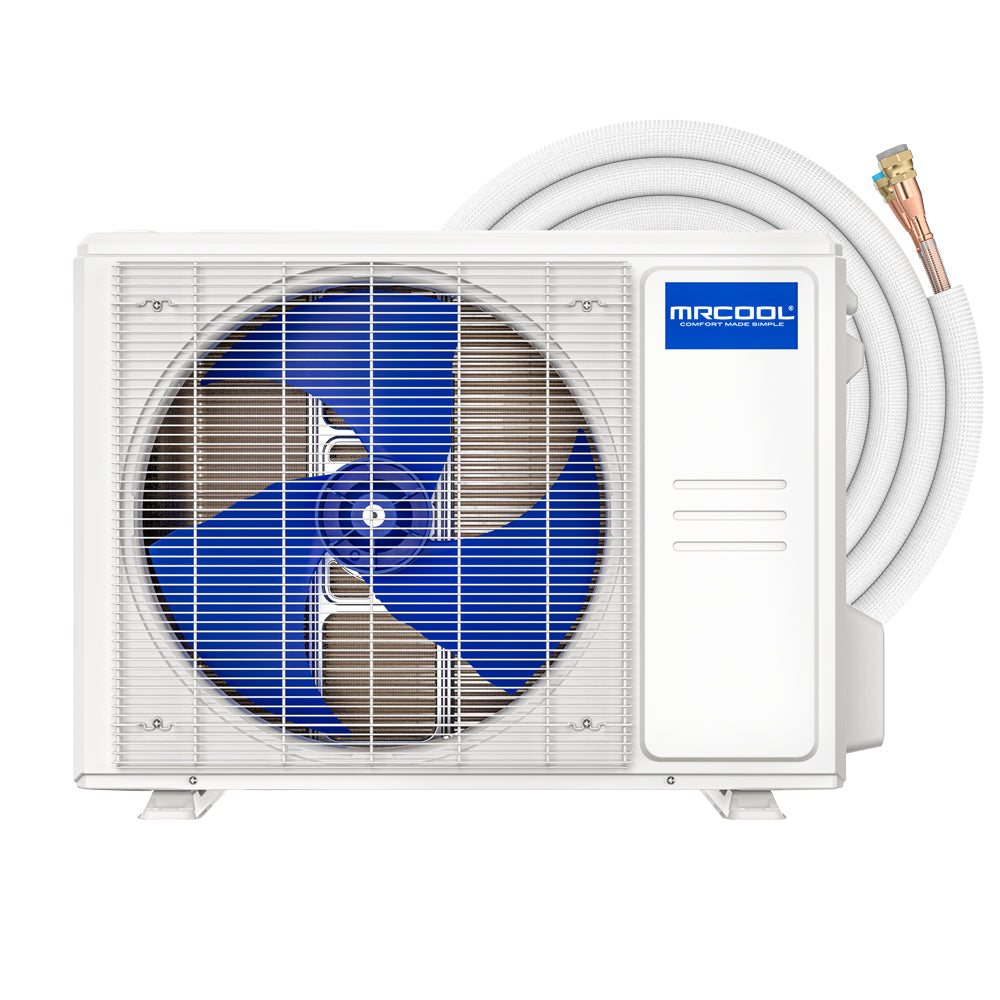

With no special tools or experience required, this system can heat or cool spaces between up to 350 sq. ft. The pre-charged 25-foot QuickConnect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the need for vacuuming. The included DIYPRO® cable replaces the need for electrical conduit, offering added durability against weather, animals, and yardwork tools. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant.
For coastal homes, the Gold Fin Condenser provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. The Timer function helps reduce energy use, while Auto mode maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. The anti-mildew function prevents mold by reducing excess condensation in the air handler.
Backed by an industry-leading warranty, the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser now includes a limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
Feature List
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Technical Specifications
| Attribute | Value |
|---|---|
| SEER2 | 23.6 |
| EER2 | 14 |
| HSPF2-4 | 11.5 |
| HSPF2-5 | 8.6 |
| Tonnage | 0.75 |
| Cooling Capacity (BTU) | 9,000 |
| Heating Capacity (BTU) | 10,000 |
| Voltage (V) | 115 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 18 |
| Color | White |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Volume (oz) | 30.34 |
| Decibel Rating (dBA) | 54 |
| Inverter | DC |
| Line Set Length (ft) | 25 |
| Max Line Set Length (ft) | 82 |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Compressor Motor Type | Rotary |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
Dimensions & Weight:
| Dimension/Weight | Value |
|---|---|
| Net Depth (in) | 11.93 |
| Net Height (in) | 21.85 |
| Net Width (in) | 30.12 |
| Net Weight (lbs) | 83.11 |
| Gross Depth (in) | 16.54 |
| Gross Height (in) | 27.56 |
| Gross Width (in) | 36.22 |
| Gross Weight (lbs) | 65.48 |
-
